Threaded Fittings Up to 20 PN Bar
This series of fittings is costructed for any type of industrial application that includes the use of threaded fittings in stainless steel and for all types of systems that include the use of low pressure.
The connection between the male and female components is supplied via metals seal, which is determined by the joint between the gas conical male threds and cylindrical gas female threads.
A wide range of articles are available also with NPT threading
Standards: ISO 4144
Materials: Stainless Steel AISI 304/L - AISI 316/L
Dimensions: Standard Series from 1/8'' to 2''- On request to 4''
Pressure: Up to PN 20 bar

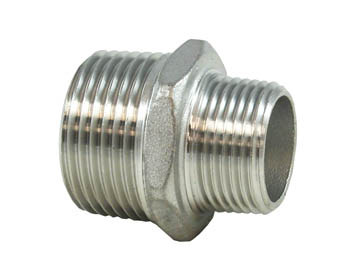

RMX05.. – REDUCING NIPPLE M/M BSPT
Threads: EN 10226-1 2006 ( Ex ISO 7/1)
Tollerance: ISO 4144: 2003

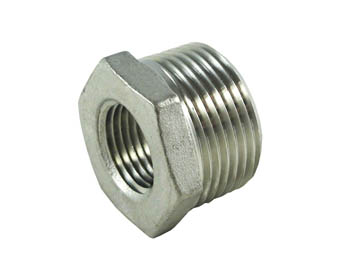

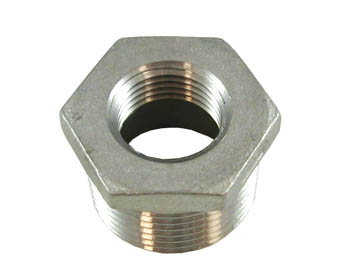

RMX07.. – REDUCING BUSCHING M/F BSPT X BSP
Thread 1: EN 10226-1 2006 ( Ex ISO 7/1)
Thread 2: EN 10226-1 2006 ( Ex ISO 7/1)
Tollerance: ISO 4144: 2003

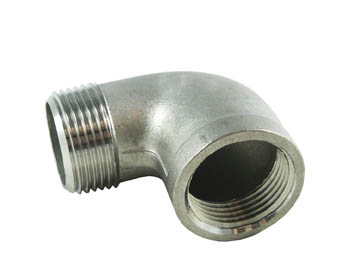

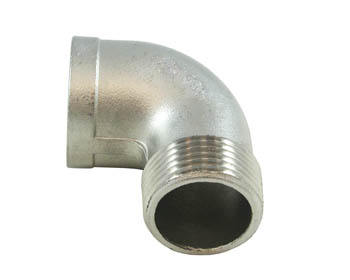

RMX11.. – ELBOW 90° M/F BSPT X BSP
Thread 1: EN 10226-1 2006 ( Ex ISO 7/1)
Thread 2: EN 10226-1 2006 ( Ex ISO 7/1)
Tollerance: ISO 4144: 2003

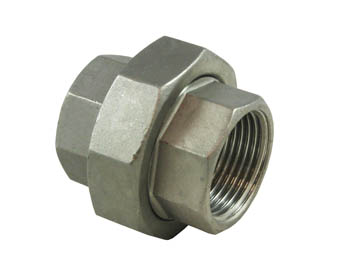

RMX20.. – UNION 3 PIECES TAPERED METAL SEAT F/F BSP
Threads: EN 10226-1 2006 ( Ex ISO 7/1)
Tollerance: ISO 4144: 2003

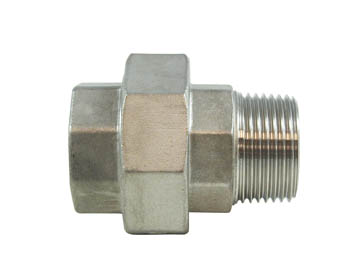

RMX21.. – UNION 3 PIECES TAPERED METAL SEAT M/F BSPT X BSP
Thread 1: EN 10226-1 2006 ( Ex ISO 7/1)
Thread 2: EN 10226-1 2006 ( Ex ISO 7/1)
Tollerance: ISO 4144: 2003

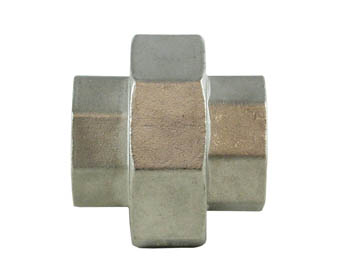

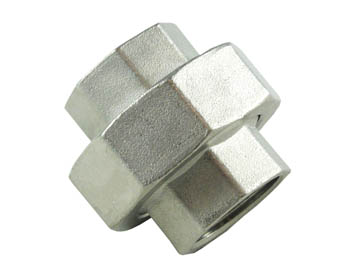

RMX22.. – UNION 3 PIECES TAPERED SEAT WITH GASKET SEAL F/F BSP
Threads: EN 10226-1 2006 ( Ex ISO 7/1)
Tollerance: ISO 4144: 2003

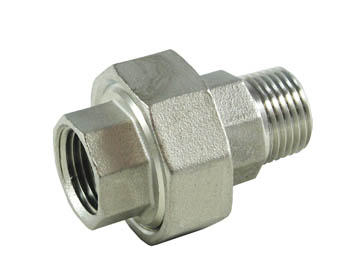

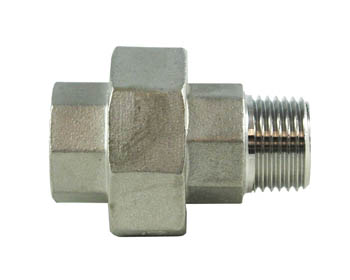

RMX23.. – UNION 3 PIECES TAPERED SEAT WITH GASKET SEAL M/F BSPT X BSP
Thread 1: EN 10226-1 2006 ( Ex ISO 7/1)
Thread 2: EN 10226-1 2006 ( Ex ISO 7/1)
Tollerance: ISO 4144: 2003

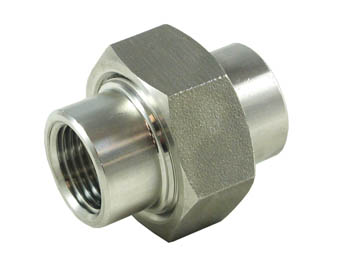

RMX25.. – UNION 3 PIECES FLAT SEAT WITH PTFE SEAL F/F BSP
Thread: EN 10226-1 2006 ( Ex ISO 7/1)
Tollerance: ISO 4144: 2003

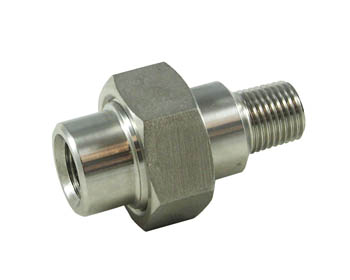

RMX26.. – UNION 3 PIECES FLAT SEAT WITH PTFE SEAL MF BSPT X BSP
Thread 1: EN 10226-1 2006 ( Ex ISO 7/1)
Thread 2: EN 10226-1 2006 ( Ex ISO 7/1)
Tollerance: ISO 4144: 2003

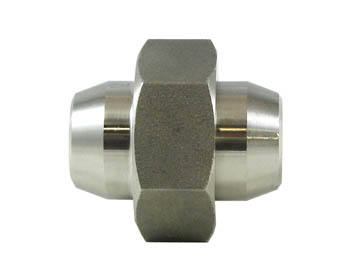

RMX29.. – UNION 3 PIECES TAPERED METAL SEAT M/M BW
Threads: EN 10226-1 2006 ( Ex ISO 7/1)
Tollerance: ISO 4144: 2003
