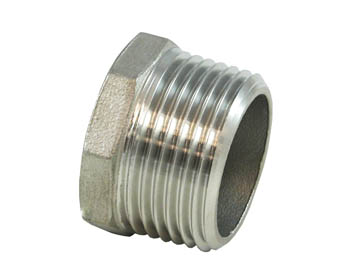

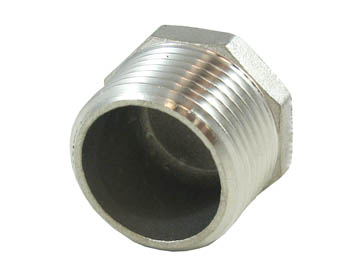

RMX06.. – HEX. PLUG BSPT

Thread: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003


Note: standard assembly is done according to UNI EN 10226:2006 (ex ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (ex ISO 7/1) proper mounting is not guaranteed.

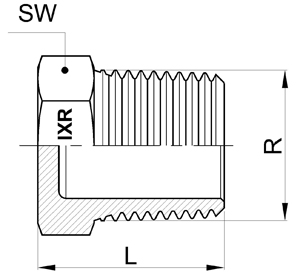

Order code R L SW
RMX0601 1/8" 12 11
RMX0602 1/4" 14.5 15
RMX0603 3/8" 16 18
RMX0604 1/2" 19.5 23
RMX0605 3/4" 21 28
RMX0606 1" 24 35
RMX0607 1.1/4" 27 44
RMX0608 1.1/2" 27 50
RMX0609 2" 32 62
