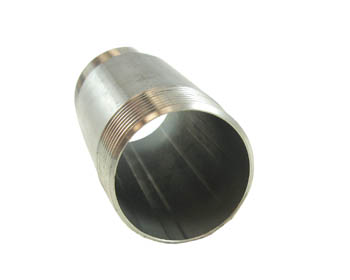

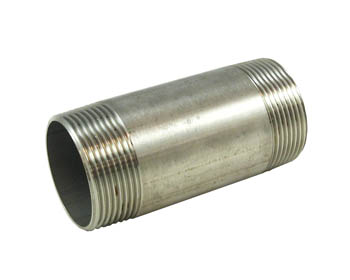

RMX03.. - BARREL NIPPLE BSP

Threads: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003


Note: standard assembly is done according to UNI EN 10226:2006 (ex ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (ex ISO 7/1) proper mounting is not guaranteed.

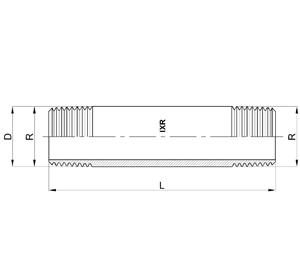

Order code R L D
RMX0301 1/8" 40 10
RMX0302 1/4" 40 14
RMX0303 3/8" 40 17.2
RMX0304 1/2" 60 21.4
RMX0305 3/4" 60 26.7
RMX0306 1" 60 33.4
RMX0307 1.1/4" 80 42.2
RMX0308 1.1/2" 80 48.3
RMX0309 2" 100 60.4
