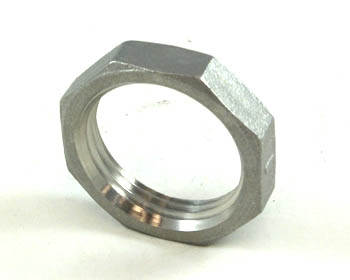

RMX24.. – LOCKNUT BSP

Thread: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003

Note: standard mounting is done according to UNI EN 10226:2006 (Ex UNI/ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (Ex UNI/ISO 7/1) proper mounting is not guaranteed.

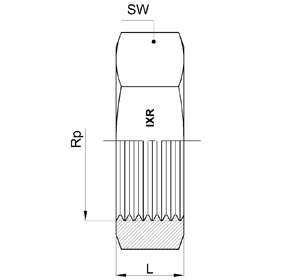

Order code Rp L SW
RMX2401 1/8" 5 15
RMX2402 1/4" 6 18
RMX2403 3/8" 6 22
RMX2404 1/2" 7 27
RMX2405 3/4" 7 32
RMX2406 1" 9 40
RMX2407 1.1/4" 11 48
RMX2408 1.1/2" 11 55
RMX2409 2" 12 68
