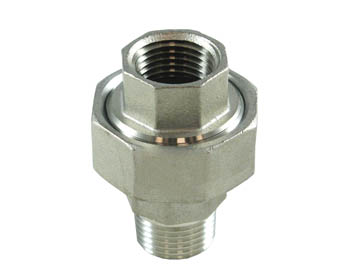

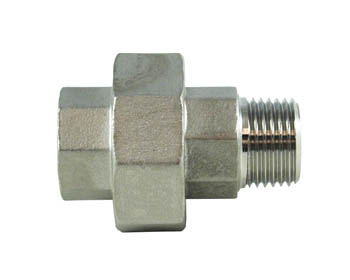

RMX23.. – UNION 3 PIECES TAPERED SEAT WITH GASKET SEAL M/F BSPT X BSP

Threas 1: EN 10226-1  2006 ( Ex ISO 7/1)
Thread 2: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003


Note: standard mounting is done according to UNI EN 10226:2006 (Ex UNI/ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (Ex UNI/ISO 7/1) proper mounting is not guaranteed.

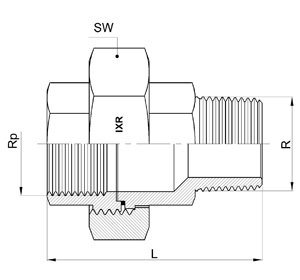

Order code R Rp L SW
RMX2302 1/4" 1/4" 44 17
RMX2303 3/8" 3/8" 47.5 20
RMX2304 1/2" 1/2" 54 25
RMX2305 3/4" 3/4" 58 30
RMX2306 1" 1" 68 38
RMX2307 1.1/4" 1.1/4" 74.5 47
RMX2308 1.1/2" 1.1/2" 78.5 53
RMX2309 2" 2" 90 66
