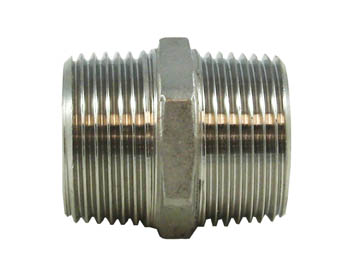

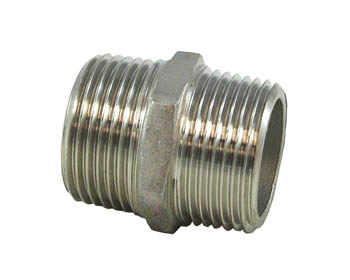

RMX04.. – NIPPLE M/M BSPT

Threads: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003


Note: standard assembly is done according to UNI EN 10226:2006 (ex ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (ex ISO 7/1) proper mounting is not guaranteed.

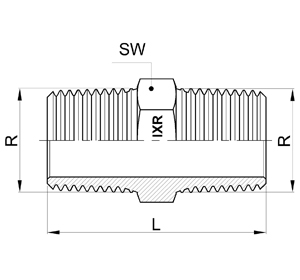

Order code R L SW
RMX0401 1/8" 20 11
RMX0402 1/4" 25 15
RMX0403 3/8" 27 18
RMX0404 1/2" 34 23
RMX0405 3/4" 36.5 28
RMX0406 1" 42 35
RMX0407 1.1/4" 47.5 44
RMX0408 1.1/2" 47.5 50
RMX0409 2" 57 62
