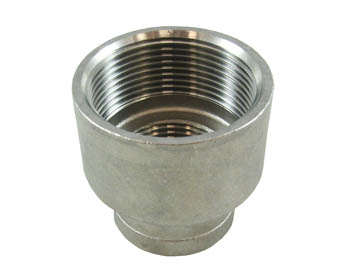

RMX16.. – REDUCING COUPLING BSP

Thread: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003


Note: standard mounting is done according to UNI EN 10226:2006 (Ex UNI/ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (Ex UNI/ISO 7/1) proper mounting is not guaranteed.

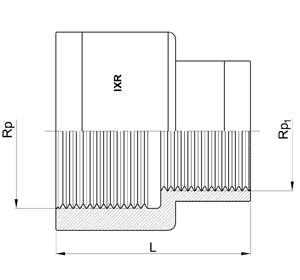

Order code Rp Rp1 L
RMX1601 1/4" 1/8" 25
RMX1602 3/8" 1/8" 26
RMX1603 3/8" 1/4" 26
RMX1604 1/2" 1/4" 34
RMX1605 1/2" 3/8" 34
RMX1606 3/4" 3/8" 36
RMX1607 3/4" 1/2" 36
RMX1608 1" 1/2" 42
RMX1609 1" 3/4" 42
RMX1610 1.1/4" 1/2" 48
RMX1611 1.1/4" 3/4" 48
RMX1612 1.1/4" 1" 48
RMX1613 1.1/2" 3/4" 52
RMX1614 1.1/2" 1" 52
RMX1615 1.1/2" 1.1/4" 52
RMX1616 2" 1" 58
RMX1617 2" 1.1/4" 58
RMX1618 2" 1.1/2" 58
