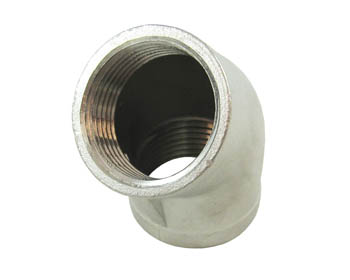

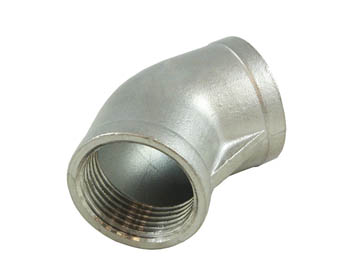

RMX15.. – ELBOW 45° F/F BSP

Threads: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003


Note: standard mounting is done according to UNI EN 10226:2006 (Ex UNI/ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (Ex UNI/ISO 7/1) proper mounting is not guaranteed.

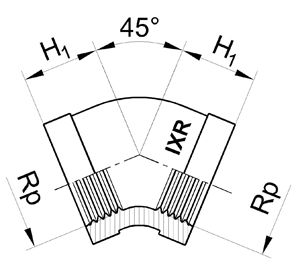

Order code Rp H1
RMX1501 1/8" 16
RMX1502 1/4" 17
RMX1503 3/8" 19
RMX1504 1/2" 21
RMX1505 3/4" 25
RMX1506 1" 29
RMX1507 1.1/4" 33
RMX1508 1.1/2" 37
RMX1509 2" 42
