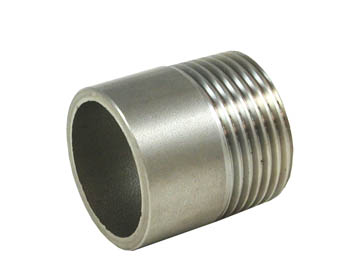

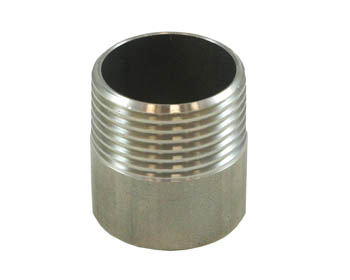

RMX01.. - WELDING NIPPLE BSPT

Thread: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003


Note: standard assembly is done according to UNI EN 10226:2006 (ex ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (ex ISO 7/1) proper mounting is not guaranteed.

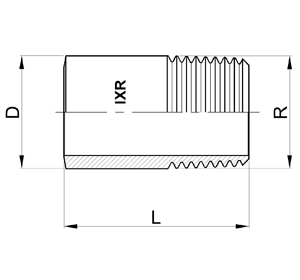

Order code R L D
RMX0101 1/8" 30 10
RMX0102 1/4" 30 13.7
RMX0103 3/8" 30 17.1
RMX0104 1/2" 35 21.3
RMX0105 3/4" 40 26.7
RMX0106 1" 40 33.4
RMX0107 1.1/4" 50 42.2
RMX0108 1.1/2" 50 48.3
RMX0109 2" 50 60.3
