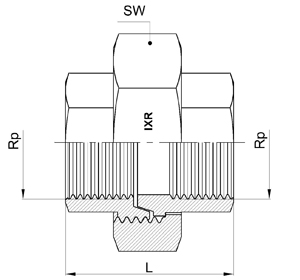

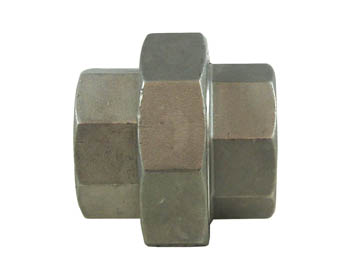

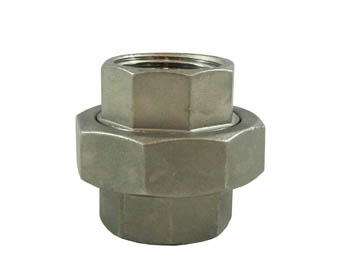

RMX20.. – UNION 3 PIECES TAPERED METAL SEAT F/F BSP

Threads: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003

Notes:
standard mounting is done according to UNI EN 10226:2006 (Ex UNI/ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (Ex UNI/ISO 7/1) proper mounting is not guaranteed.
Dimensions are subject to slight variations. Contact our technical department for special requests

Order code Rp L SW
RMX2001 1/8" 30
RMX2002 1/4" 33.5 30.5
RMX2003 3/8" 36.5 34
RMX2004 1/2" 39.5 37
RMX2005 3/4" 42.5 46
RMX2006 1" 50 53
RMX2007 1.1/4" 54 71
RMX2008 1.1/2" 58 71
RMX2009 2" 65 85
Download technical bulletin Save and print data sheet   Request for information
