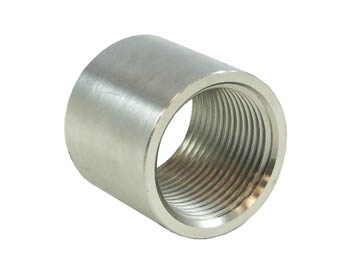

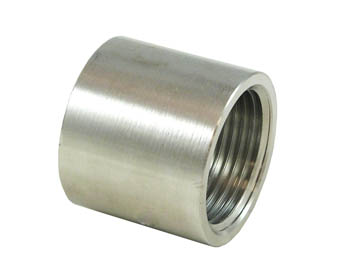

RMX02.. - COUPLING BSP

Thread: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003


Note: standard assembly is done according to UNI EN 10226:2006 (ex ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (ex ISO 7/1) proper mounting is not guaranteed.

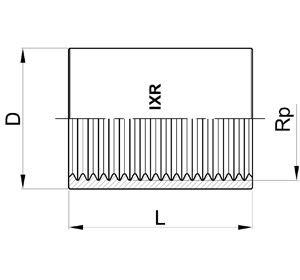

Order code Rp L D
RMX0201 1/8" 17 13
RMX0202 1/4" 25 18.5
RMX0203 3/8" 25 20
RMX0204 1/2" 32 24.5
RMX0205 3/4" 35 30
RMX0206 1" 41 37.5
RMX0207 1.1/4" 45 46.5
RMX0208 1.1/2" 45 53
RMX0209 2" 54 65.5
