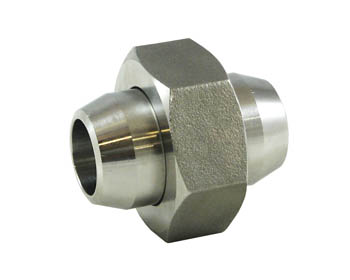

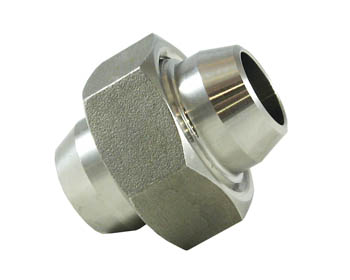

RMX29.. – UNION 3 PIECES TAPERED METAL SEAT M/M BW

Threads: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance: ISO 4144: 2003



Notes:
Standard mounting is done according to UNI EN 10226:2006 (Ex UNI/ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (Ex UNI/ISO 7/1) proper mounting is not guaranteed.
Dimensions are subject to slight variations. Contact our technical department for special requests.

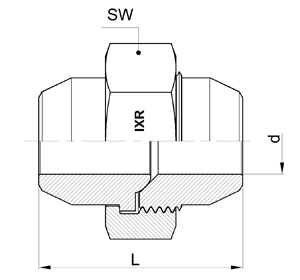

Order code L d SW
RMX2901 37 10.2 30
RMX2902 37 13.2 30
RMX2903 40 17.2 36
RMX2904 46 21.3 41
RMX2905 48 26.9 46
RMX2906 52 33.7 50
