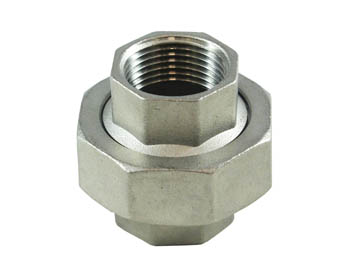

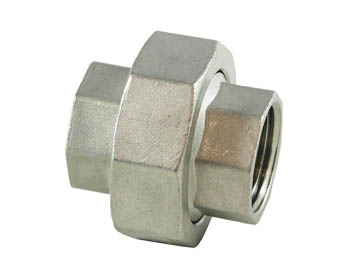

RMX22.. – UNION 3 PIECES TAPERED SEAT WITH GASKET SEAL F/F BSP

Threads: EN 10226-1  2006 ( Ex ISO 7/1)

Tollerance ISO 4144 : 2003


Note: standard mounting is done according to UNI EN 10226:2006 (Ex UNI/ISO 7/1). Therefore if you mount a male according to UNI/ISO 228 with a female according to UNI EN 10226:2006 (Ex UNI/ISO 7/1) proper mounting is not guaranteed.

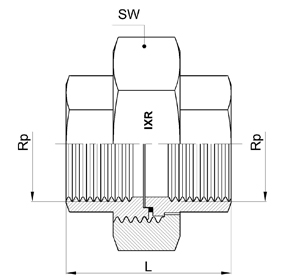

Order code Rp L SW
RMX2202 1/4" 33.5 17
RMX2203 3/8" 36.5 20
RMX2204 1/2" 39.5 25
RMX2205 3/4" 42.5 30
RMX2206 1" 50 38
RMX2207 1.1/4" 54 47
RMX2208 1.1/2" 58 53
RMX2209 2" 65 66
