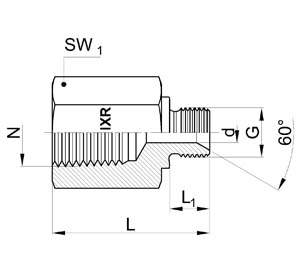

Riferimento: ISO 8434-6 / BS 5200
Attacchi: Maschio Sede Conica/Femmina
Filettatura 1: Gas Cilindrica UNI/ISO 228
Filettatura 2: NPT - ASME B.1.20.2M-2006
| Codice di ordinazione |
G |
N |
L |
L1 |
d |
SW1 |
Psi |
PN |
| AUX69-1818 |
1/8 |
1/8 |
25 |
8 |
4 |
14 |
6000 |
420 |
| AUX69-1814 |
1/8 |
1/4 |
31 |
8 |
4 |
19 |
6000 |
420 |
| AUX69-1418 |
1/4 |
1/8 |
32 |
12 |
6 |
19 |
6000 |
420 |
| AUX69-1414 |
1/4 |
1/4 |
32 |
12 |
6 |
19 |
6000 |
420 |
| AUX69-1438 |
1/4 |
3/8 |
31 |
10 |
7 |
24 |
6000 |
420 |
| AUX69-1412 |
1/4 |
1/2 |
38 |
10 |
7 |
27 |
6000 |
420 |
| AUX69-3838 |
3/8 |
3/8 |
36 |
12 |
9 |
24 |
6000 |
420 |
| AUX69-3814 |
3/8 |
1/4 |
36 |
12 |
9 |
22 |
6000 |
420 |
| AUX69-3812 |
3/8 |
1/2 |
37 |
12 |
9 |
27 |
6000 |
420 |
| AUX69-1212 |
1/2 |
1/2 |
39 |
14 |
12 |
27 |
6000 |
420 |
| AUX69-1214 |
1/2 |
1/4 |
24 |
14 |
11.5 |
27 |
6000 |
420 |
| AUX69-1238 |
1/2 |
3/8 |
32.5 |
14 |
12 |
27 |
6000 |
420 |
| AUX69-1234 |
1/2 |
3/4 |
46 |
14 |
13 |
36 |
6000 |
420 |
| AUX69-3434 |
3/4 |
3/4 |
48 |
16 |
18 |
36 |
6000 |
420 |
| AUX69-3438 |
3/4 |
3/8 |
30 |
16 |
14.5 |
32 |
6000 |
420 |
| AUX69-3412 |
3/4 |
1/2 |
44 |
16 |
18 |
32 |
6000 |
420 |
| AUX69-3411 |
3/4 |
1 |
51 |
16 |
18 |
41 |
6000 |
420 |
| AUX69-1111 |
1 |
1 |
49.5 |
18 |
22 |
41 |
6000 |
420 |
| AUX69-1112 |
1 |
1/2 |
31 |
18 |
18 |
41 |
6000 |
420 |
| AUX69-1134 |
1 |
3/4 |
32 |
18 |
23 |
41 |
6000 |
420 |
| AUX69-1154 |
1 |
1.1/4 |
50.5 |
18 |
22 |
50 |
3000 |
210 |
| AUX69-5454 |
1.1/4 |
1.1/4 |
58 |
20 |
25 |
50 |
3000 |
210 |
| AUX69-5434 |
1.1/4 |
3/4 |
37 |
20 |
22.5 |
50 |
3000 |
210 |
| AUX69-5411 |
1.1/4 |
1 |
37 |
20 |
33 |
50 |
3000 |
210 |
| AUX69-3232 |
1.1/2 |
1.1/2 |
62 |
22 |
37 |
55 |
3000 |
210 |
| AUX69-3211 |
1.1/2 |
1 |
39 |
22 |
28.5 |
55 |
3000 |
210 |
| AUX69-3254 |
1.1/2 |
1.1/4 |
39 |
22 |
37 |
55 |
3000 |
210 |
| AUX69-4242 |
2 |
2 |
64 |
23 |
43 |
70 |
3000 |
210 |
|
|
