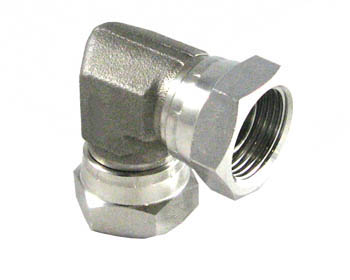

AUX45.. – ELBOW ADAPTER SWIVEL NUT BSPP - 60°

Reference: ISO 8434-6 /BS 5200
Connections: Female Swivel Nut
Threads: BSPP UNI/ ISO 228

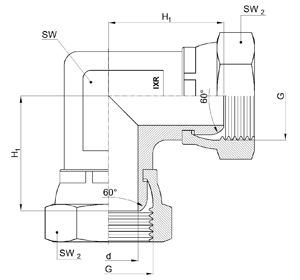

Order code G H1 d SW SW2
AUX4501 1/8" 18 4 12 14
AUX4503 1/4" 23.5 6 14 19
AUX4505 3/8" 25.5 8 17 22
AUX4507 1/2" 29.5 11 19 27
AUX4509 3/4" 37 16 27 32
AUX4511 1" 43 22 36 41
AUX4513 1.1/4" 51 28 41 50
AUX4515 1.1/2" 50 33.5 50 55
AUX4517 2" 70
